Create a Workflow in PROOF UI¶
On the proof UI, you can create new PROOF Workflows by selecting the Workflow Editor from the menu.
The Workflow Editor is the main interface for creating and managing Workflows in PROOF.
It provides a visual representation of the Workflow structure, allowing users to drag and drop Blocks, connect them, and configure their settings.
Add a new Workflow¶
- You can create a new Workflow by clicking on the "+" button in the Workflow Editor to the right of the Workflow combo box.
- This opens the Workflow Settings window of the created Workflow. Customize the label, description and parametrization of the Workflow here.
- Closing the settings window leads to the empty Workflow canvas where you can start building your Workflow.
Add PROOF Blocks to the Workflow from Block Templates¶
- You can drag and drop Block Templates from the right sidebar onto the Workflow canvas.
- Each Block Template represents a predefined specific functionality or model that can be used in the Workflow.
- A Block is created as an instance of the Block Template when it is added to the Workflow.
- The connectable inputs and outputs of each Block are represented by small circles on the left and right sides of the Block, respectively.
Connect Blocks¶

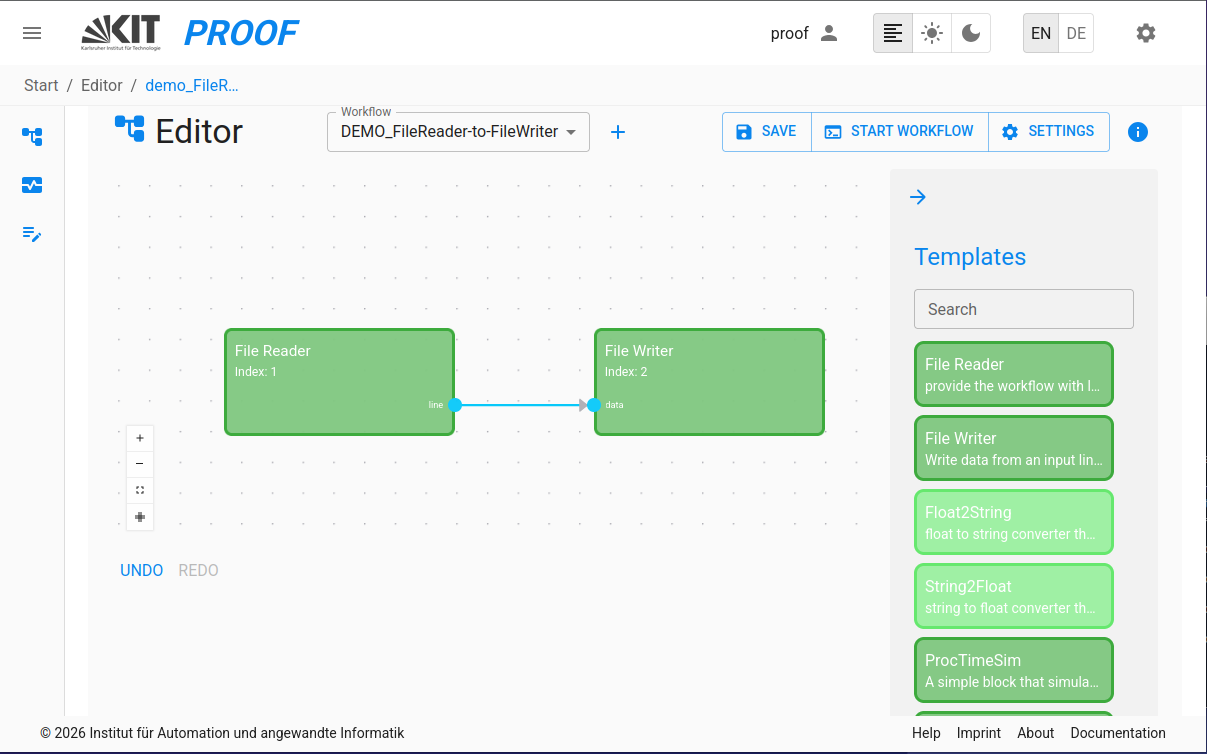

- You can connect Blocks by clicking on the output of one Block and dragging it to the input of another Block.
- This establishes a data flow between the Blocks, allowing them to communicate and share data.
- When trying to connect Blocks, only compatible input and output pins are connectable. Compatible pins have the same color and data type.

Loop Connections¶
- A loop in a workflow is a scenario where the output of a block A is used as input for another block B which then again connects to block A.
- In general, a loop can span over an arbitrary number of blocks as long as the output of a block A, processed by n blocks, is used as an input of block A again.
- Loops can be implemented by using a static input (INIT phase) as initial value for the non-static input in EXECUTION phase.
- Both inputs need to use the same modelVarName.
Configure Workflow Settings¶

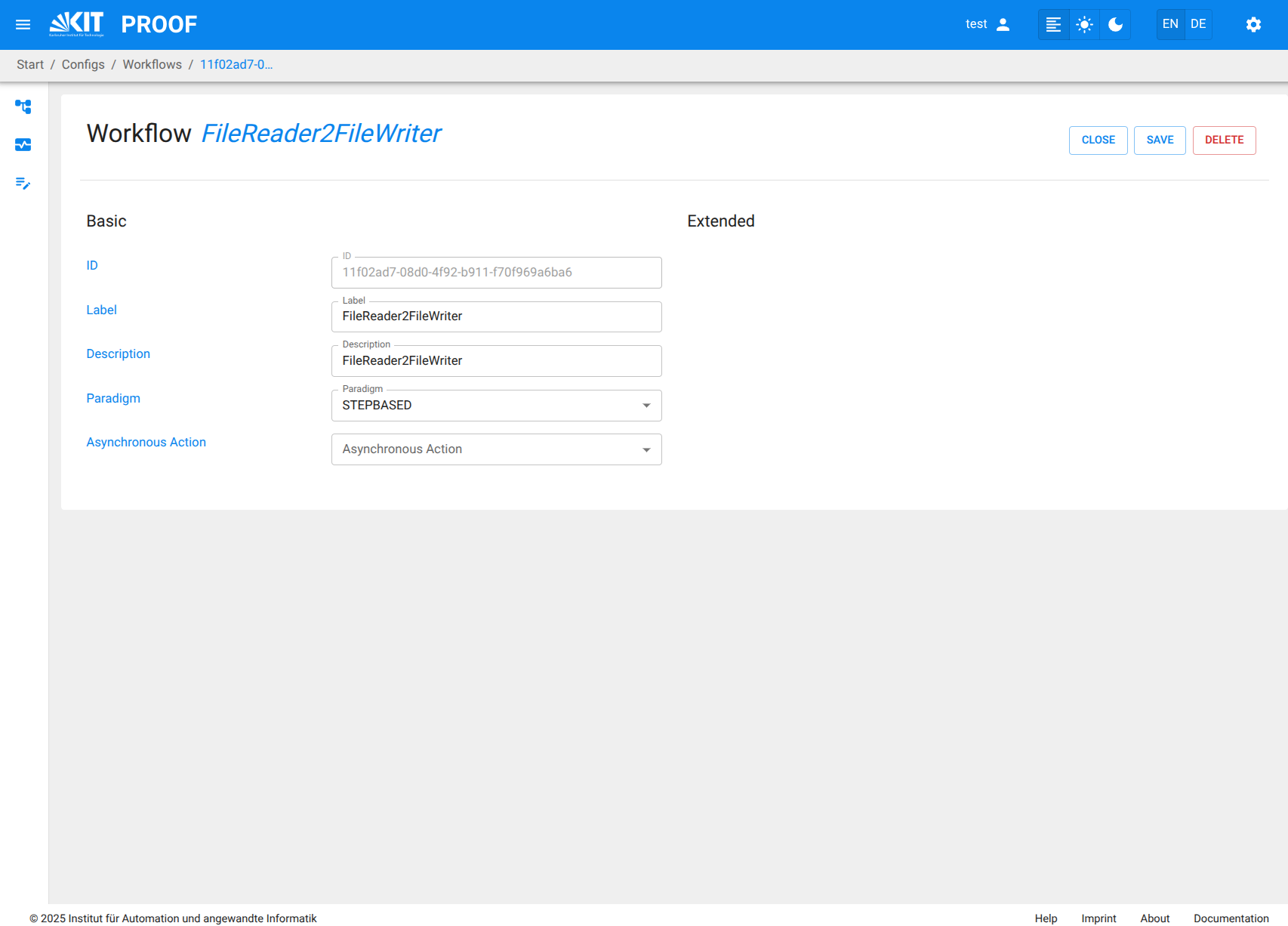

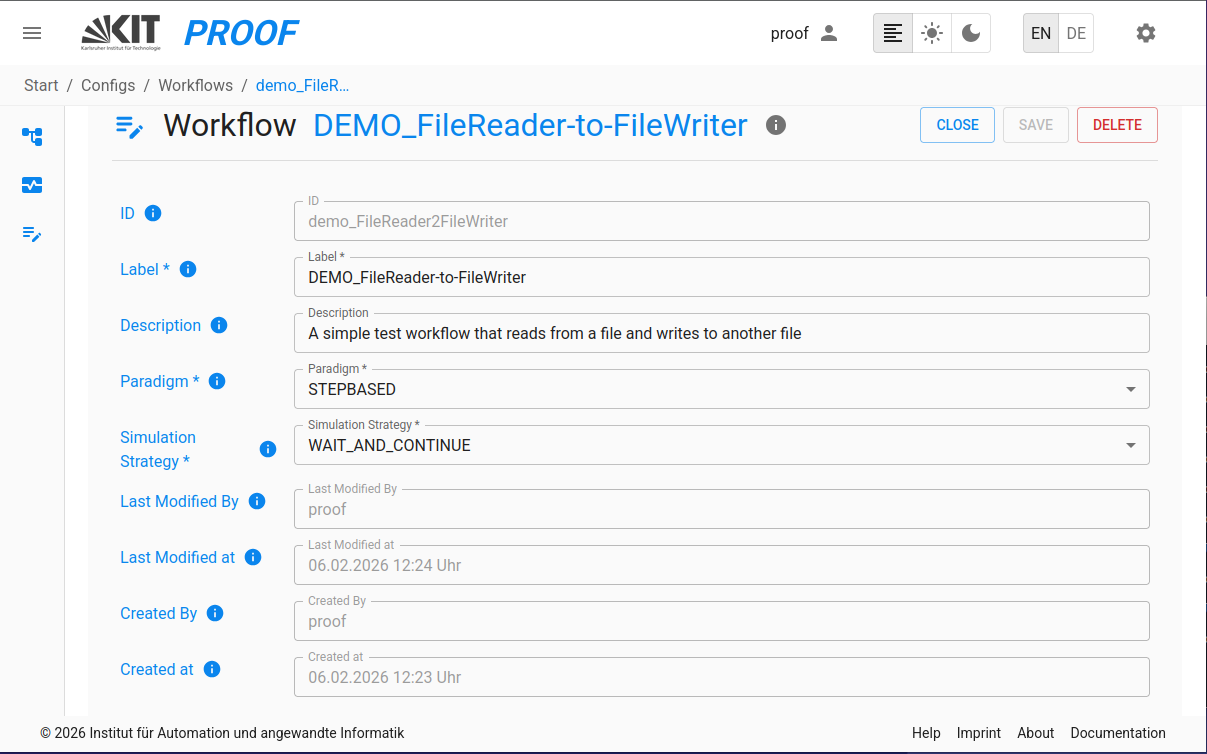

- You can configure the settings of the Workflow by clicking on the "Settings" button in the top right corner of the Workflow Editor.
- This allows you to set ID, label, description, paradigm, and asynchronous Action for the entire Workflow.
- By clicking on the "save" button, the Workflow settings are saved.

Workflow Timeouts¶
Step-based Workflows provide two configurable timeouts that control the behaviour of an execution
when the process does not proceed as expected. Both values are interpreted in seconds and are
part of the Workflow's Step-Based Configuration (stepBasedConfig).
Worker Timeout (workerTimeout)¶
The Worker Timeout defines how long the orchestrator waits for notify messages from all workers (Blocks) of the Workflow. The waiting time accumulates over consecutive scheduling cycles. As soon as it exceeds the configured Worker Timeout, the orchestrator finalizes all blocks and shuts down the Workflow.
- Default:
10seconds - Increase this value for Blocks with long execution times per step (e.g., complex FMU model computations) so that a slow but healthy Block does not cause a premature shutdown.
- Decrease this value to fail fast when a Workflow is expected to respond quickly.
Input Timeout (inputTimeout)¶
The Input Timeout defines how long a worker waits at most for a required input value during a step.
If the timeout is exceeded, the worker tries to use the defaultValue of the corresponding input if
one is defined. If no default value is available, the step returns with a timeout (error) for
this Block.
- Default:
10seconds - Values below
0.5seconds are clamped to0.5seconds. - The value is propagated to each block container
Setting the Timeouts¶
The timeouts can be set in two places:
- Workflow Configuration: In the Configs Tab, edit the Workflow and set Worker Timeout and Input Timeout in the Step-Based Configuration panel. These values are stored with the Workflow and used for every execution.
- Execution Start Parameters: In the Monitoring view, both timeouts can be overridden per execution in the start parameters before running the Workflow. The entered values are used for this execution only and do not change the stored Workflow configuration.
Note: For PROOF installations, deployment-level defaults for both timeouts can also be configured
via the environment settings proof.orchestration.worker.timeout (orchestrator) and
proof.worker.input.timeout (worker). The Workflow-specific values take precedence.
Configure Block Settings¶

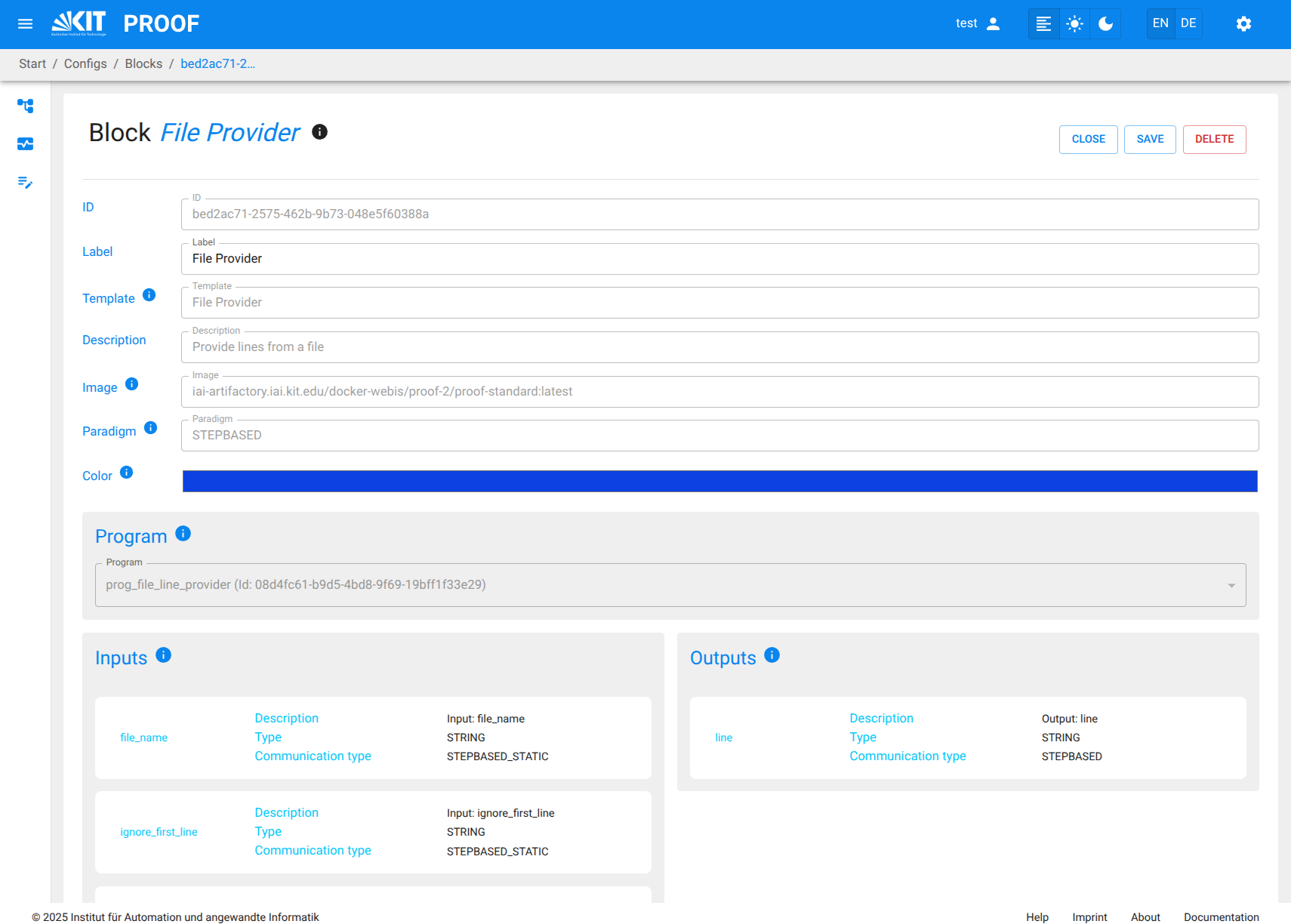

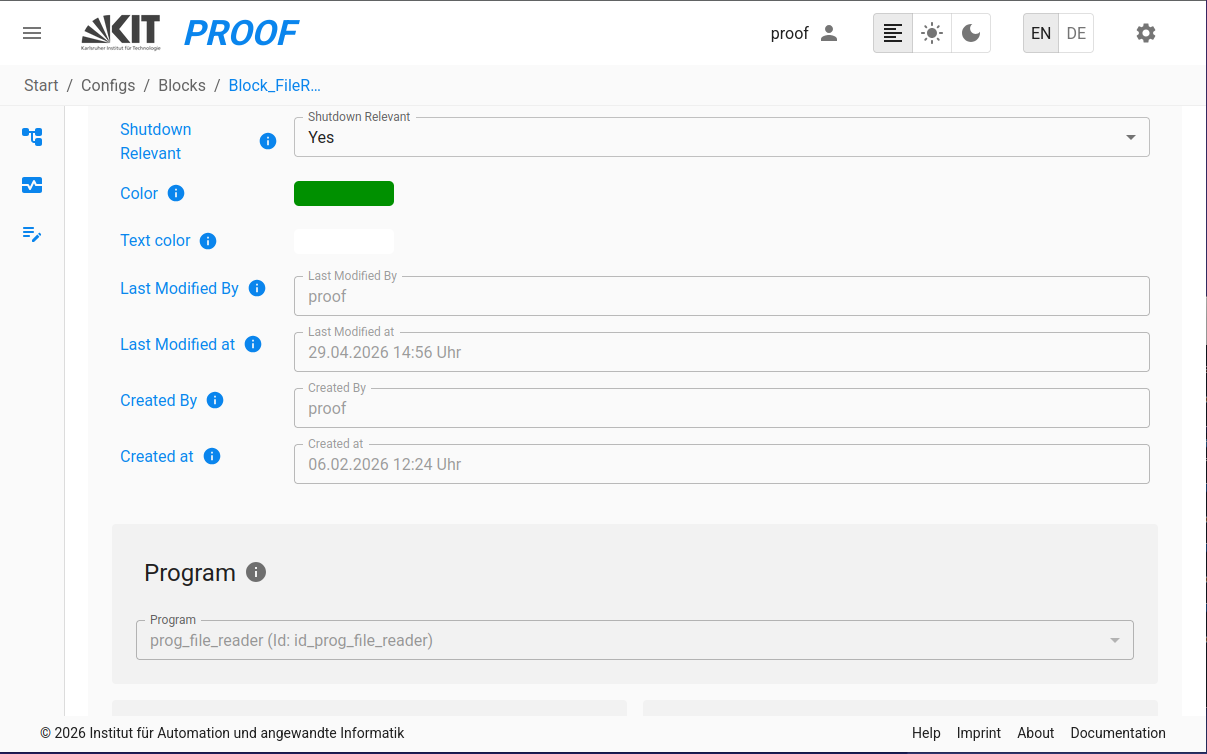

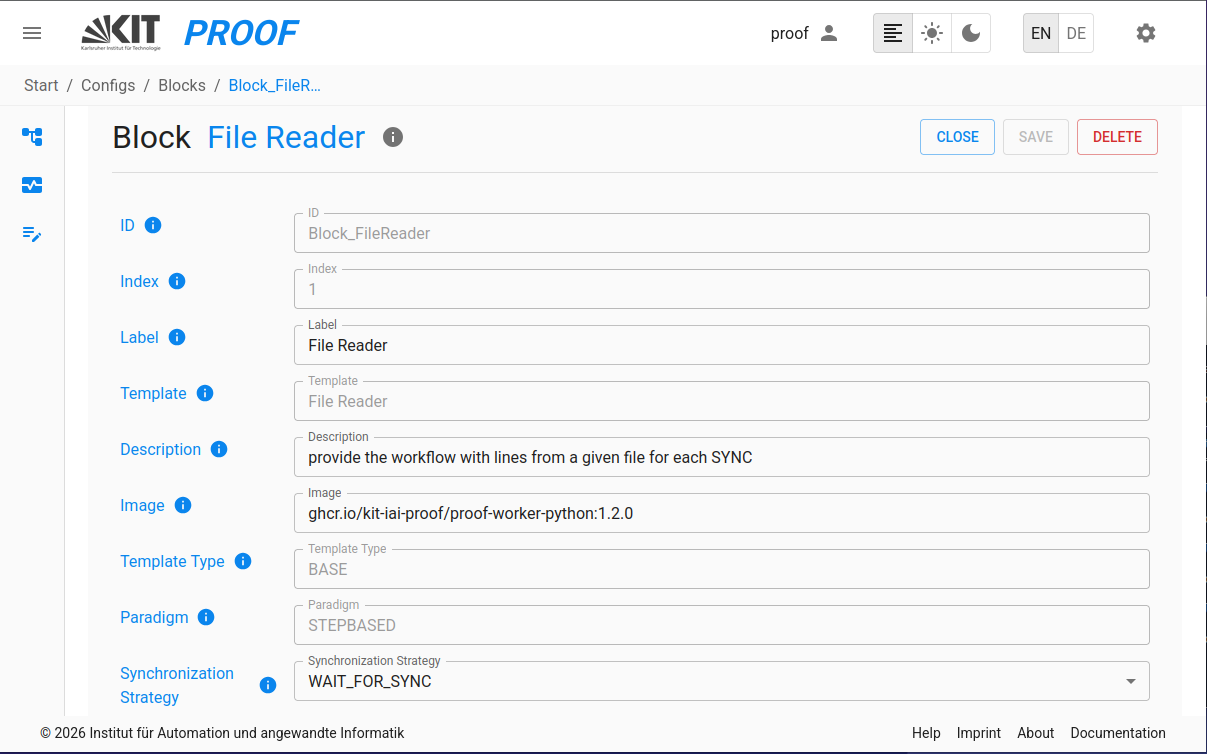

- You can configure the Name of each Block by right-clicking on it, selecting "Settings" and accessing the Block configuration panel.
- It is not possible to change the basic functionality of a Block, as it is defined by the Block Template.
- Some parameters which are inherited from the Block Template can be changed (e.g. the container Image). If they differ from the Block Template they are being marked visually.
- It is possible to change all Template attributes as well as the associated Program and Attachments using the Template Configuration panel.

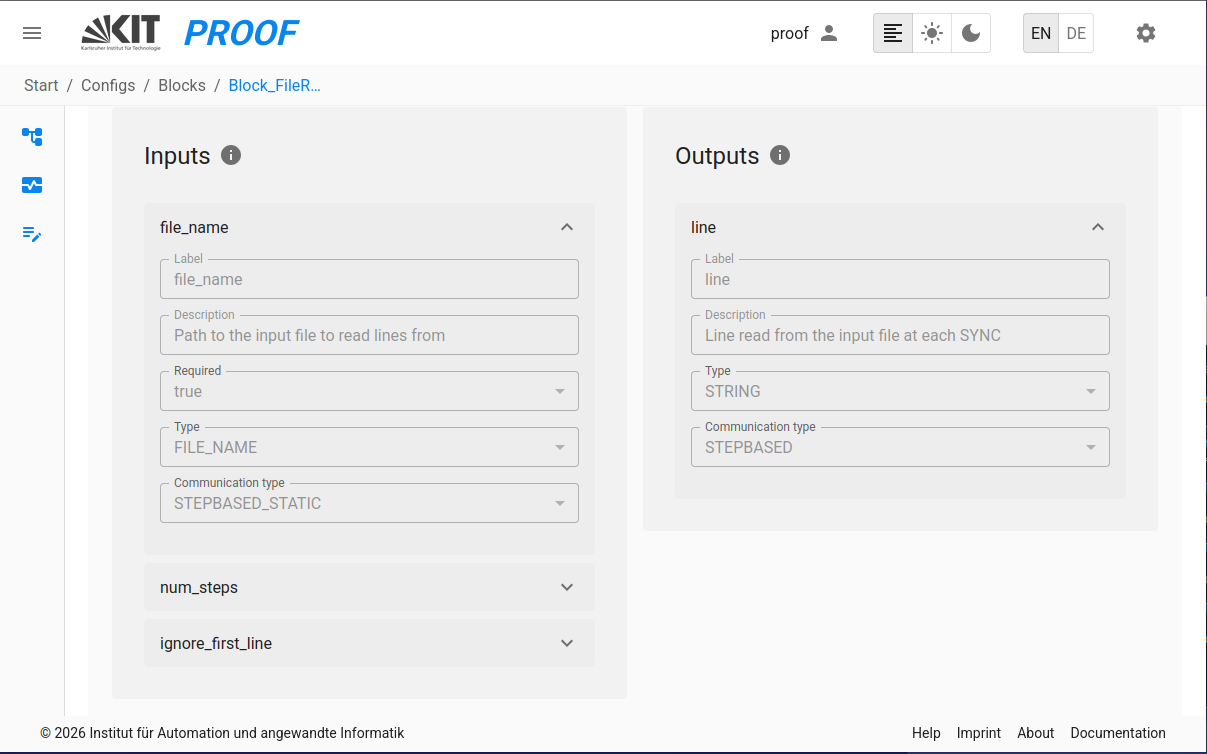

- Inputs are displayed alphabetically in the Block configuration for better organization and discoverability.

Important: Block Naming Restrictions¶
When setting the block name/title, you must follow Docker container naming conventions:
- Do not use brackets
()or other special characters such as!,@,#,$,%, etc. - Spaces in block titles are automatically removed when creating Docker container names
- Use only alphanumeric characters, hyphens
-, and underscores_ - The block title is used to create the Docker container name for that block
Examples:
- ✅ Good:
FileReader1,My_Block,Data-Processor - ❌ Bad:
Reader(1),My Block!,Data@Processor
Violating these restrictions will cause errors when executing the workflow, as Docker cannot create containers with invalid names.
Save the Workflow¶

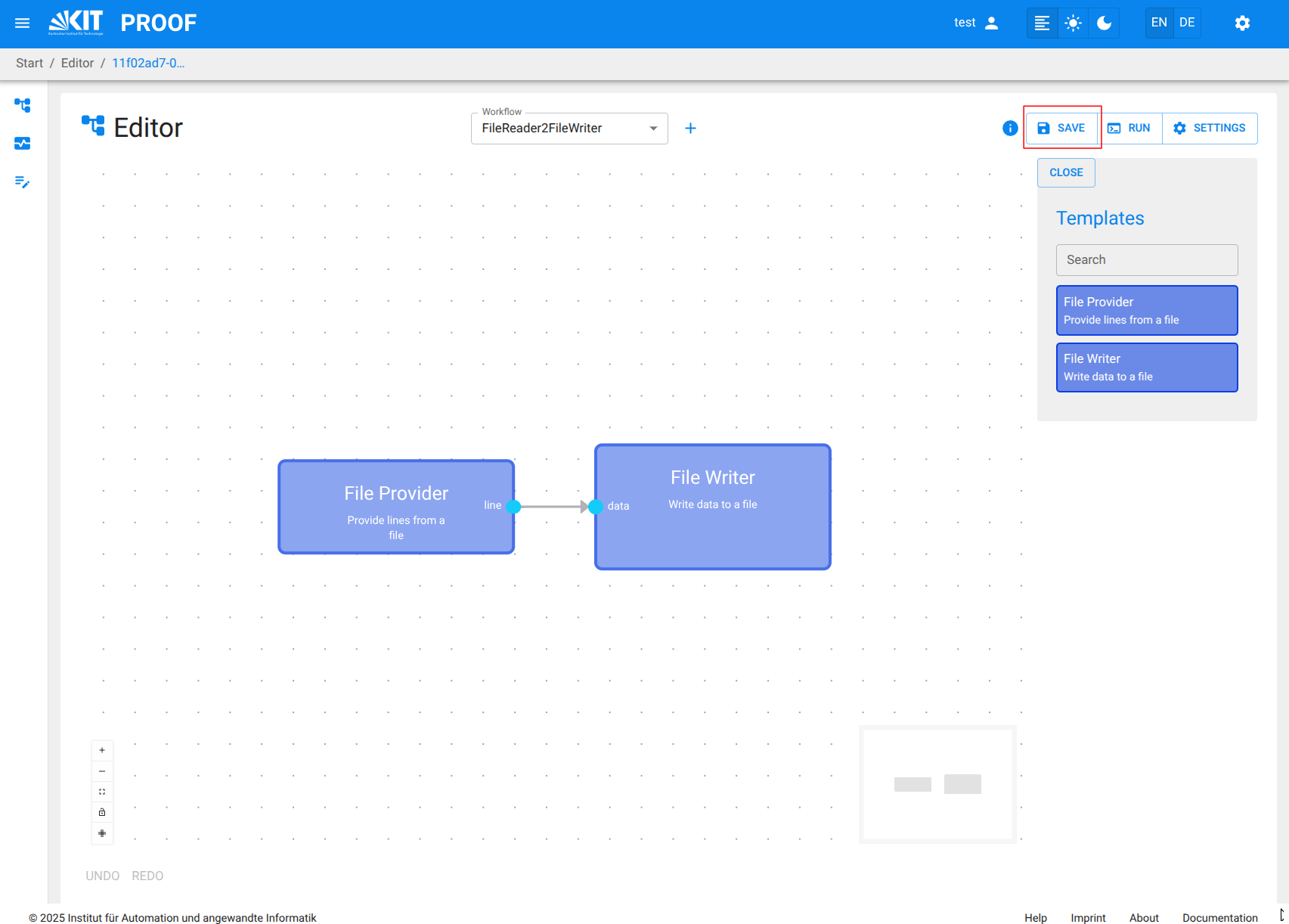

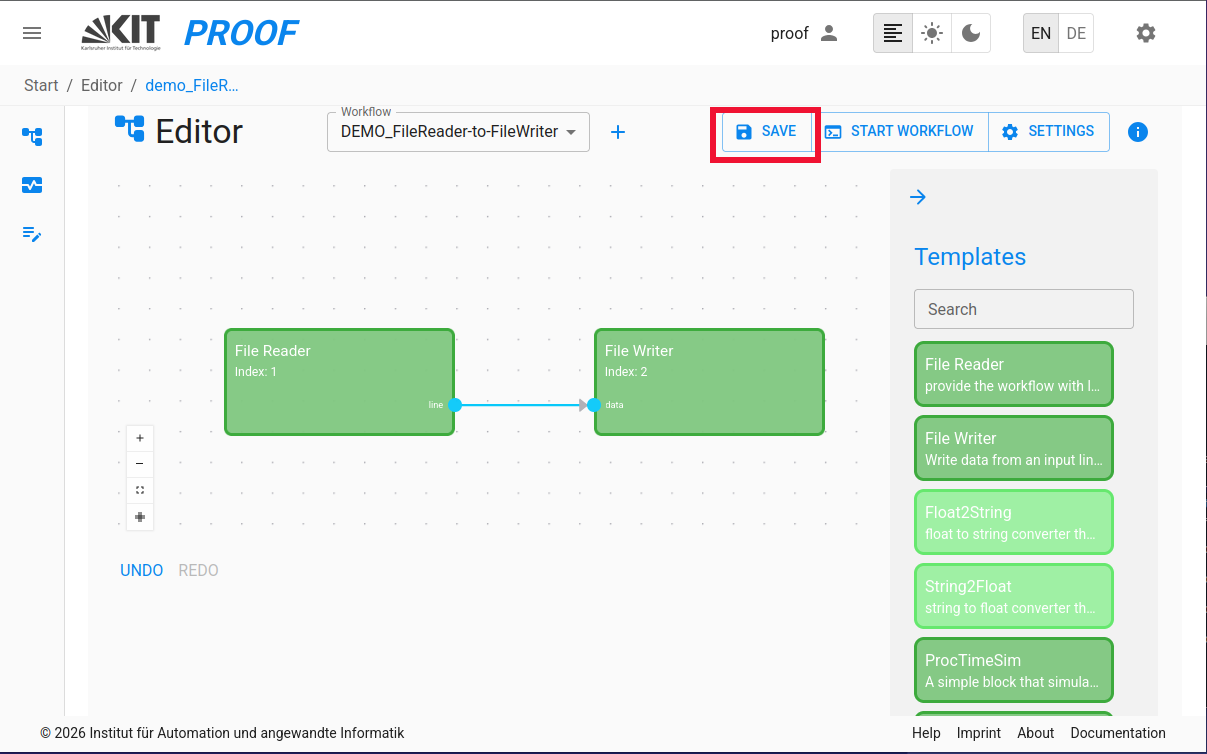

- Once you have built your Workflow, you must save it by clicking on the "Save" button in the top right corner of the Workflow Editor.
- This saves the Workflow to the PROOF database, making it available for execution and further editing.

Executing the workflow¶
... via Workflow Editor¶
- After having saved the Workflow, you can execute it by navigating to the START WORKFLOW button in the top right corner of the Workflow editor.
- You must enter all relevant Execution values in the pop-up execution dialog, such as Execution ID, Description, and other parameters specific to the Workflow.
... via Monitoring Panel¶

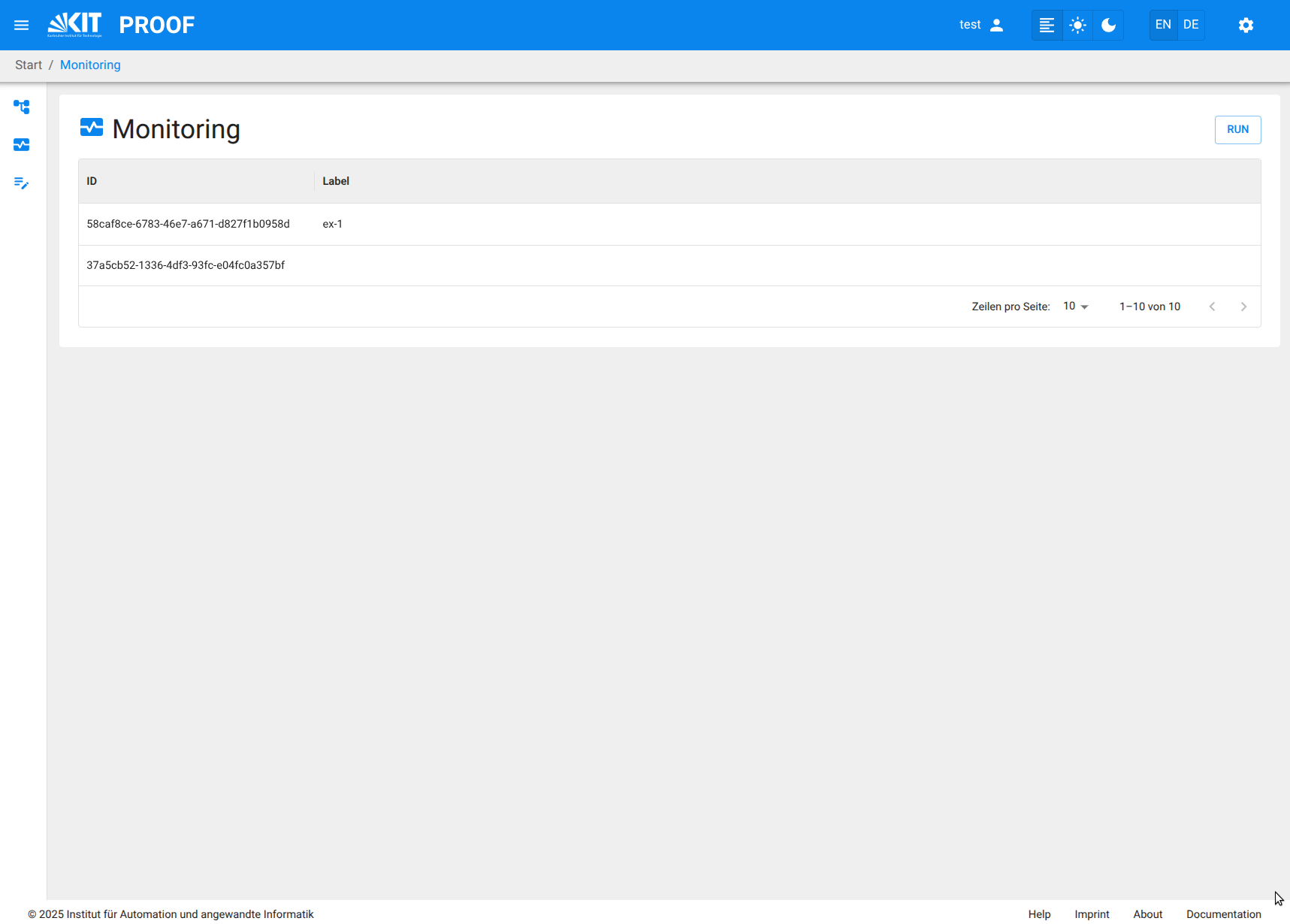

- You can also start a saved Workflow from the Workflow Monitoring panel in the PROOF UI.
- Click the Workflow Monitoring menu item in the left menu bar to open the monitoring interface.
- Press the RUN button in the top right corner of the Workflow Monitoring interface. A Combo box appears listing all saved Workflows.
- Select the saved Workflow from the list and click on the "Start" button to initiate the execution.
- Enter all necessary attribute values in the pop-up execution dialog, such as Execution Label, Description, and all start values for the given Inputs.
- Monitor the execution progress and view results through the Workflow Monitoring interface.
